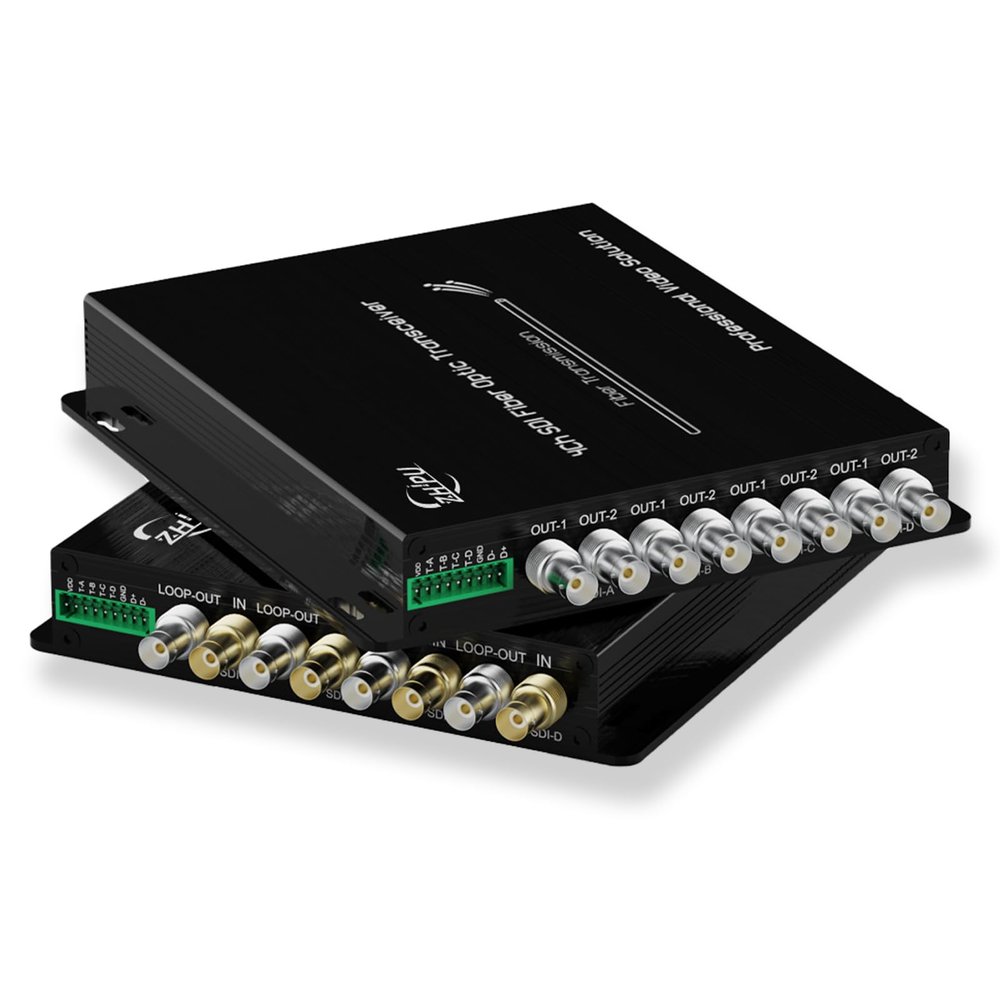

Xnyahitog 4-Channel 3G-SDI Fiber Converter with RS485 & 4Ch Tally, 1080P@60Hz Fiber Extender 4Ch Loop Output, Up to 20km Over Single-Mode FC Fiber

Description

• 4Ch Loop outputIt support 4Ch loop output, local output, meeting the requirements of multi-device connection. And the transmission can up to 20KM.
• 1Ch backward RS485 & 4Ch TallyThe 4ch 3G-SDI to fiber converter support both Backwards RS485(Max 57600) and Tally. You can control other device or use Tally Function in broadcast.
• 1080P&60HzThe SDI Fiber converter support 3G-SDI with 8-channel audio embedded, resolution up to 1080P&60Hz, Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s.
• Long stable transmissionLossless 4K/3G-SDI transmission with zero delay and synchronized audio/video. Uncompressed broadcast quality over 20km.
• Industrial-Grade DesignAluminum housing with wide temp range (-20C~70C / -4F~158F), built for harsh outdoor environments.

Overview
The 4ch 3G-SDI Fiber Extender series non-compressed SDI digital optical terminal is composed of SDI transmitters and receivers that transmit 3G SDI video signals, audio signals, and RS485 signals via optical fiber, while supporting loop output. Optical terminal machine transmission has the advantages of long transmission distance (0-20km), wide frequency band, strong interference resistance, high safety performance and light weight, which is suitable for long distance and special environmental transmission.

Features:
Full digital lossless transmission, no compression broadcast level transmission, audio and video synchronous transmission;
Support 8 channels 3G-SDI input, support embedded audio synchronous transmission;
Automatic reclocking 270Mbit/s-1.48G bit/s-3Gbit/s;
Support HDTV 1080P, 1080I, 720P; 1920 * 1080 largest @60Hz;
Long transmission up to 20km;

Specifications:
1) Signal Category: SDI /3G-SDI Signal
2) Video resolution: Max 1920*1080@60Hz
3) Laser center wavelength: single mode (1310nm&1550nm)
4) Fibre transmission code rate: 270Mb/s1.48Gb/s-3Gbit/s
5) Fiber transmission distance: single mode (0-20Km
6) Applicable voltage: 5-12V DC
7) Maximum power consumption: 6W
8) Working environment: -20 ~70(-4F to 158F)
9) Dimension(L*W*H): 185*150*30mm(7.28*5.91*1.18in)
10) Weight: 1200g(2.65lb)

Package:
1* 4CH Mini 3G-SDI Fiber Converter Transmitter
1* 4CH Mini 3G-SDI Fiber Converter Receiver
2* Power Adapter
1* User Manual
