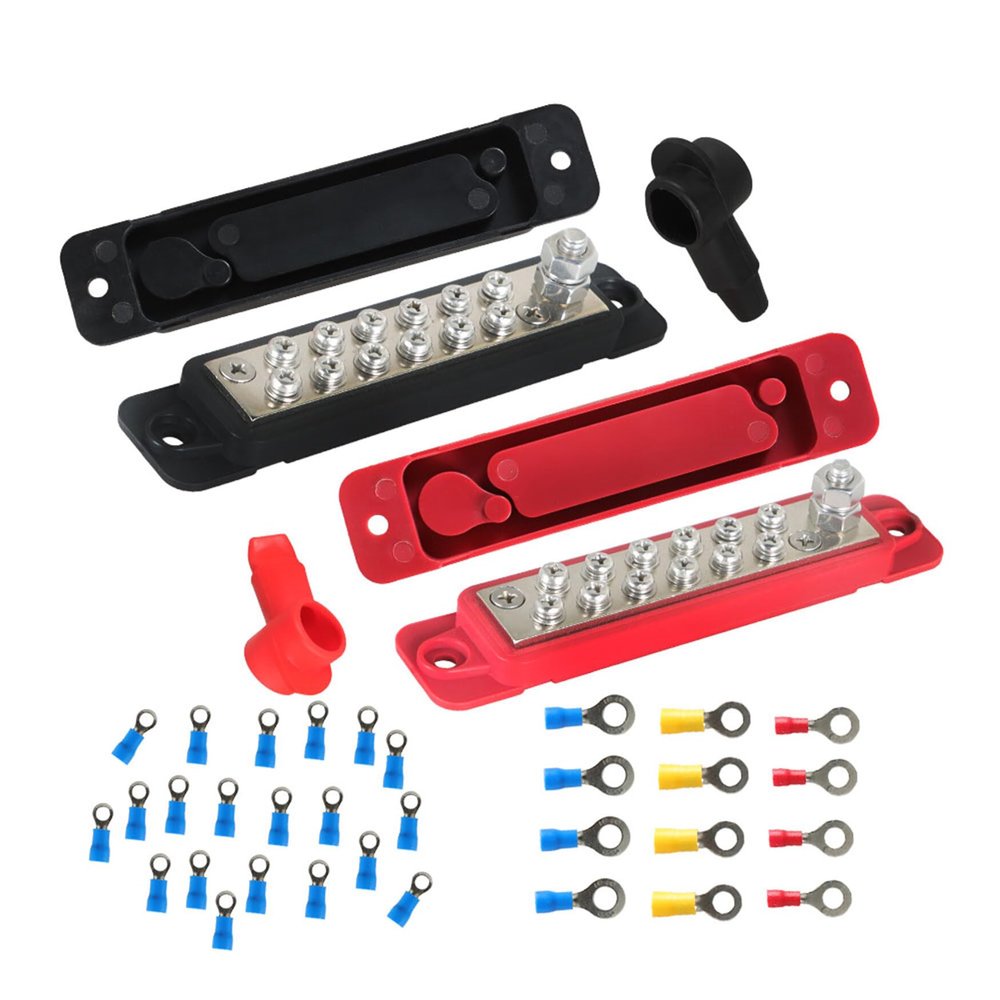

WFLNHB 12 Point Busbar Bus Bar Power Distribution 180A 12V DC Red and Black Pair

Description

• These systems allow for multiple connections to positive and negative systems. Each connection post can maintain multiple connections, making them flexible and robust
• Multiple connection points, to accomodate multiple power connections
• Nickel plated brass contact plate: high current and reduced rust
• Stainless steel hex nuts and washers
• Base Material: 16% Glass-Filled Nylon

4 Post Busbar Bus Bar Power Distribution 12V 250A 5/16" Red and Black Pair Set
5/16" posts
Nickel Plated Brass contact plate: high current
Max Amperage: 250 amps 12 vdc per connection
Max Voltage: 48 vdc
Stainless steel hex nuts and washers
Base Material: 16% Glass-Filled Nylon
Mounting center: 5.7 in
Note:Recommended torque for the nuts is not to exceed 15 ft-lb
4 Post Busbar Bus Bar Power Distribution 12V 250A 3/8" Red and Black Pair Set
3/8" posts
Nickel Plated Brass contact plate: high current
Max Amperage: 250 amps 12 vdc per connection
Max Voltage: 48 vdc
Stainless steel hex nuts and washers
Base Material: 16% Glass-Filled Nylon
Mounting center: 5.7 in
Note:Recommended torque for the nuts is not to exceed 15 ft-lb
12 Point Busbar Power Distribution 180A 12V DC Pair Black & Red
Max continuous current: 180 amps 12 vdc - 15 amps per connection
Max intermittent current: 20 amps per connection (less than 1 minute)
Max voltage: 48vdc
12 connection points, 8-32 stainless steel screws
1/4" stainless steel terminal post
Stainless steel hex nuts and lock washer
Base Material: Glass-Filled Nylon (Red & Black)
Mounting screws: 10 (not included)
Length and width: 5-5/16" x 1-1/8" (135mm x 30mm)
