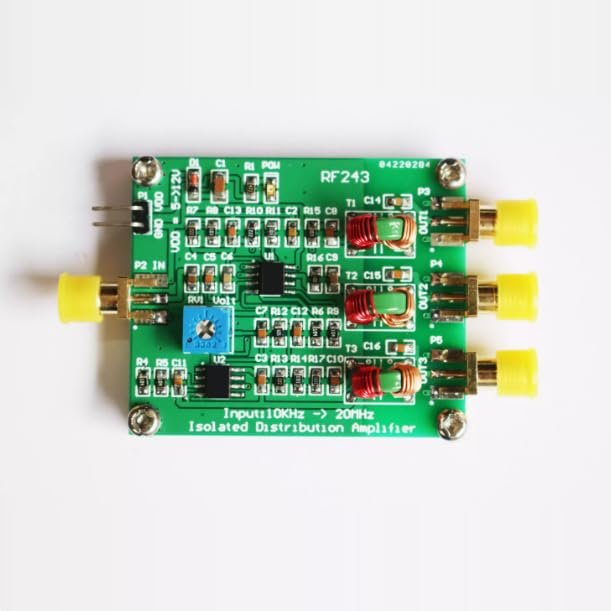

RF243 Signal Isolator Module converts one Input Signal into Three Isolation amplifiers ranging from 1KHz to 20MHz

Description

• Input voltage amplitude 0~5 Vpp
• Output frequency range 1KHz~20MHz
• Maximum output amplitude 0~8 Vpp
• Working voltage 5-12 V
• Size 51 * 43 mm

RF243 converts one input signal into three isolated amplifiers ranging from 1KHz to 20MHZ One analog signal input is converted into three independent isolated analog signal outputs
1.0 Module Parameters
Parameter unit
1. Input voltage amplitude 0~5 Vpp
2. Output frequency range 1KHz~20MHz
3. Maximum output amplitude 0~8 Vpp
4. Working voltage 5-12 V
5. Working current<50 mA
6. Size 51 * 43 mm
7. Weight 30g
RV1: Adjust the output voltage through a potentiometer
2.0
P1 interface (power supply):
VDD: Positive pole of power supply (5-12 V)
GND: Negative pole of power supply
P2 interface: Input analog signal; (RP SMA KE KHD outer screw inner needle inner hole)
P3 interface: Output the first analog signal; (RP SMA KE KHD outer screw inner needle inner hole)
P4 interface: Output the second analog signal; (RP SMA KE KHD outer screw inner needle inner hole)
P5 interface: Output the third analog signal; (RP SMA KE KHD outer screw inner needle inner hole)
