EBYTE SX1281 Wireless Module LoRa Spread Spectrum 2.4G 27 dBm 8 KM Wireless Transceiver E28-2G4M27S for Smart Home and Industrial Sensors

Description

• Application: Smart Home and Industrial Sensors; Wireless toy and remote control; Wireless alarm security system Building automation solutions Wireless industrial-grade remote control Health care products?Advanced Meter Reading Architecture(AMI); Automotive industry applications.
• Features: Communication distance tested is up to 8km in ideal condition; Maximum transmitting power of 27dBm with PA+LNA; Compatible with BLE; Support the global license-free ISM 2.4GHz
• Support air data rate of 0.595k?2Mbps; Support various modulation such as GFSK Mode?FLRC Mode?LoRa Mode; Support 2.5V~3.6V power supply, power supply over 3.3V can guarantee the best performance
• PCB and IPEX antenna optional, good for secondary and embedded development; For high speed usage, under FLRC, it is up to 1.3Mbps. NOTE: E28-2G4M27S is a hardware platform without firmware, so users need to conduct secondary development.

[IC] : SX1280
[Frequency] : 2.4~2.5GHz
[Power] : 27dBm
[Distance] : 8.0km
[Interface] : SPI
[Applications]: With stable batch production,the module is suitable for various applications(especially for smart home,IOT) Security alarm Internet of things(IOT) Electricity monitor.

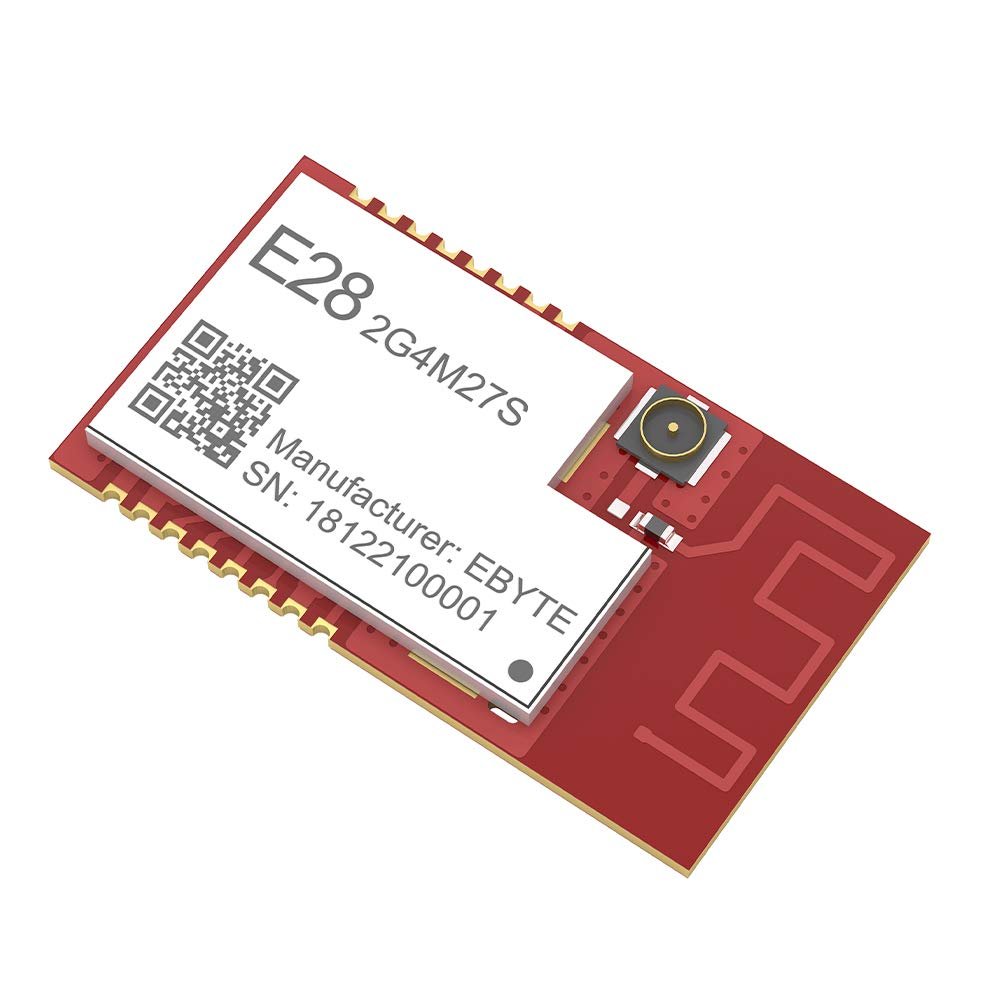

[Introduction] : E28-2G4M27S is a 2.4GHz small SMD module (pin spacing 1.27mm)designed by Ebyte. With built-in PCB antenna, SPI interface, it owns TX power of 500mW with power consumption.

[NOTE]: E28-2G4M27S is a hardware platform without firmware, so users need to conduct secondary development.

The IC SX1280 from Semtech features multiple physical layers and various modulating methods such as LoRa, FLRC and GFSK, the special modulating methods and processing ways enable longer operating range under LoRa and FLRC modulating methods, and the GFSK method covers BLE protocol.

The outstanding ultra-low power consumption and the DC-DC and Time-of-Flight on chip make the chip much more capable for smart home, security system, tracking and locating, wireless distance measuring, wearable electronics, smart bracelet and health management & etc.
