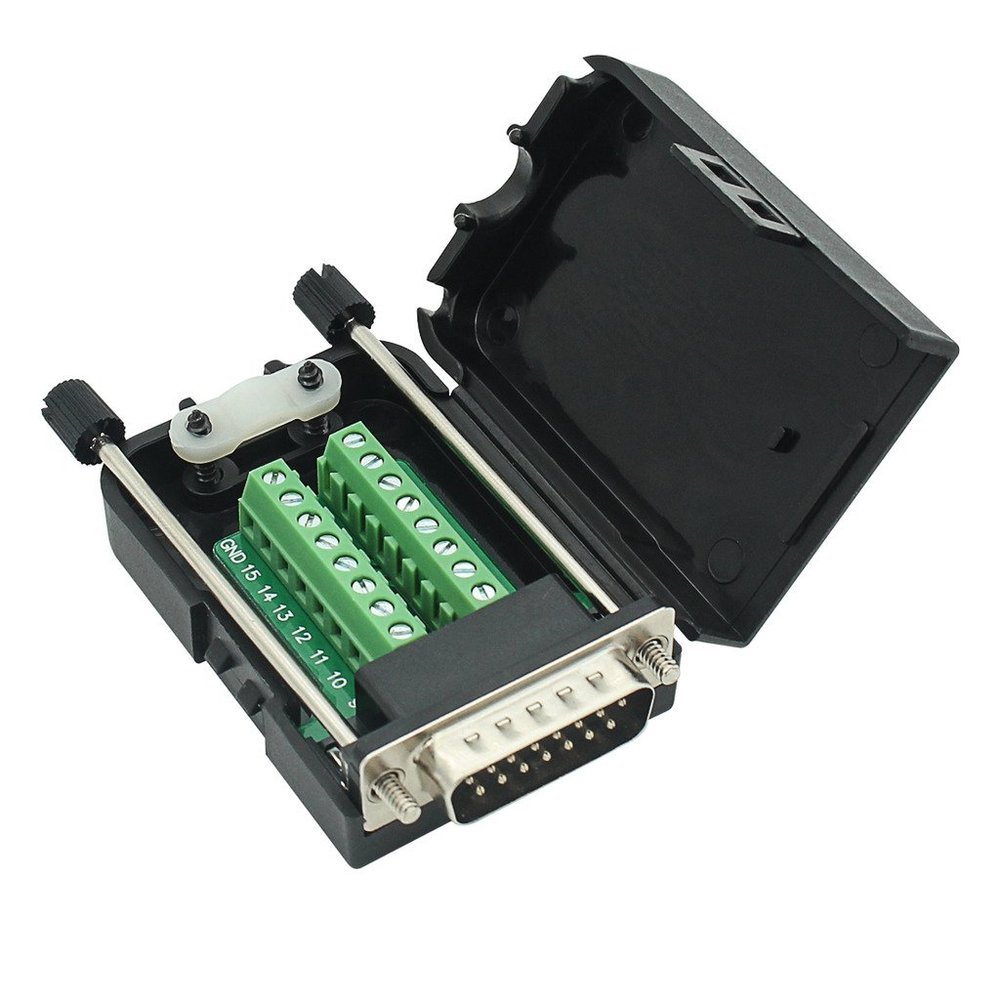

YIOVVOM DB15 Breakout Connector Male Adapter 15-pin Port Adapter to Terminal Connector Signal Module with case(Male Connector, Screw with case)

Description

• Suitable for variety of pin connections required to use serial communications industrial control products
• High quality PCB carrier, all signal ports named and labeled clearly
• No soldering needed! This is SO convenient.
• With insulation case and all-copper base, contacted better and more anti-oxidation
• Cable Hole Dia. : 10mm / 0.4";Material : Metal,Electric Part

Product name : DB15 Male adapter;
Total Size : 60 x 42 x 20mm/2.36" x 1.65" x 0. 71"(L*w*h)
Terminal hole diameter: 0.12''/3mm, terminal hole center distance : 0.2''/5mm
Material : metal Nickel plated copper needle, electric part; color : black, Green
Weight : 27G
DB15 male / female connector to screw terminals. High quality RoHS compliant assembly.
Wire range: 26-16AWG
Rated current: 10A
Connect type: male with Case
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Pin header and cage: Brass
Case: ABS + PC

Package included:
1 x DB15 breakout board male adapter with case
1x cable pressing plate
2x Screws
2x Long bolts
