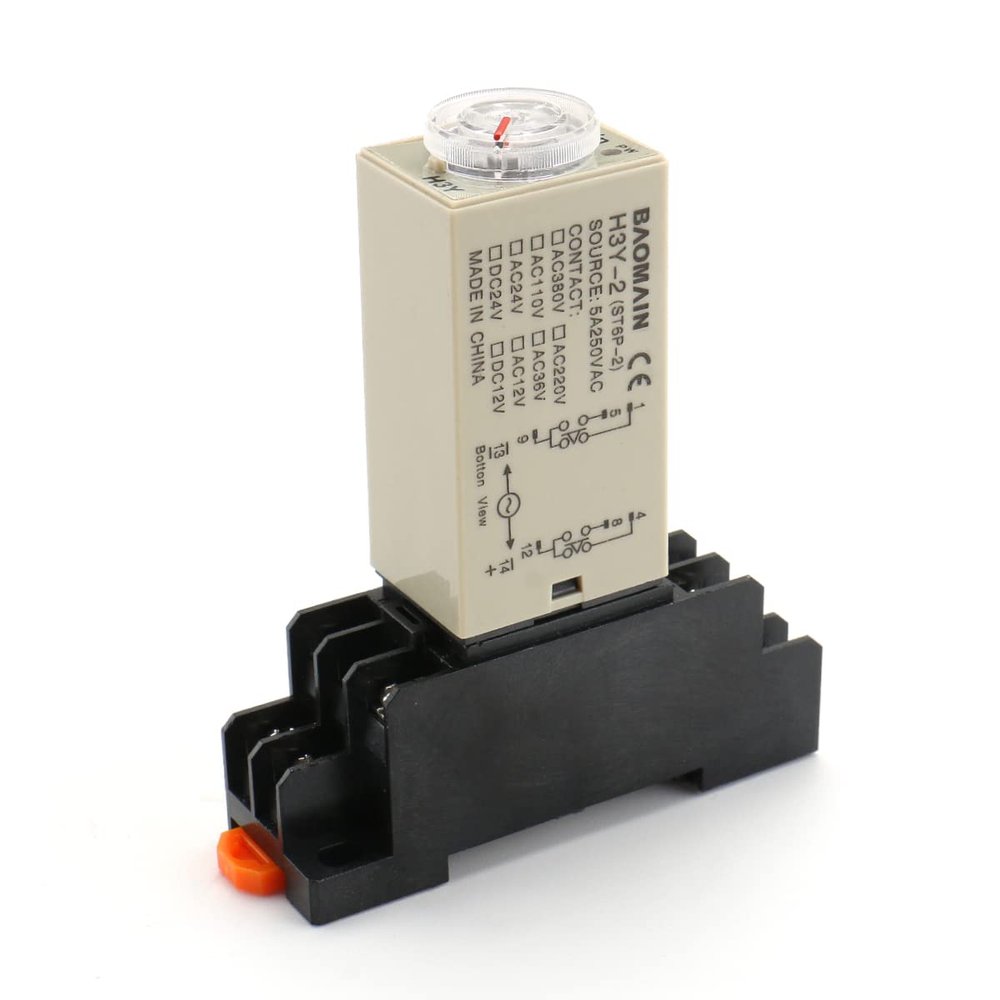

BAOMAIN H3Y-2 AC 110V Time Delay Relay, 30 Minutes DPDT 8 Pin Solid State Timer with Socket Base, 5A 250VAC Resistive Load

Description

• High-Performance Contact Mode Features a DPDT (Double Pole Double Throw) contact configuration with 2NO and 2NC contacts. Provides reliable switching for dual-circuit control with a 5A 250VAC resistive load capacity
• Synchronous 30m Dual-Delay Consistent 30-minite power-on delay timing. Dual time-delay contacts initiate timing and trigger actions in perfect synchronization. High-precision circuitry ensures zero-latency alignment between circuits for stable performance in automated sequences
• AC 110V Voltage Compatibility Operates on a stable AC 110V source. Integrated LED indicators clearly display the power and output status, allowing for quick troubleshooting and monitoring in complex panels
• 8-Pin Plug-in Design with Socket Includes an 8-pin solder terminal relay and a matching DIN rail mount socket. Simplifies installation on 35mm DIN rails and ensures secure, vibration-resistant wiring
• Versatile Industrial Applications Ideal for industrial automation systems, mechanical equipment, and electrical control cabinets. Robust construction is tailored for demanding environments requiring reliable delay logic

BAOMAIN H3Y-2 Industrial Power-On Delay Timer Relay with Socket Base

The BAOMAIN H3Y-2 is a professional-grade time delay relay designed for high-precision timing control in industrial automation and mechanical systems. Featuring a compact solid-state design, it ensures reliable sequence management to protect electrical components and optimize multi-stage industrial processes.

Technical Specifications:
Model: H3Y-2
Delay Logic: Power-On Delay (On-Delay)
Input Voltage: AC 110V
Time Range: 30 Minutes
Contact Rating: 5A 250VAC (Resistive Load)
Output Logic: DPDT (2 Sets of Changeover Contacts)
Base Model: 8-Pin Socket (Included)

Key Features:
Synchronous 30m Dual-Delay: Consistent 30-minute power-on delay timing. Dual time-delay contacts initiate timing and trigger actions in perfect synchronization. High-precision circuitry ensures zero-latency alignment between circuits for stable performance in automated sequences.
Visual Feedback: Equipped with dual LED status indicators for real-time monitoring. The integrated lights provide immediate visual confirmation of both the power input and the output switching status for enhanced troubleshooting.
Reliable Engineering: Built with high-quality solid-state components to ensure minimal timing deviation and excellent repeat accuracy. Designed for long-term durability and stable operation in demanding industrial environments.
Effortless Setup: Features a standard 8-pin plug-in design. The included PYF08A mounting base simplifies installation on standard 35mm DIN rails and allows for fast, tool-free relay replacement during maintenance.

Common Applications:
Ideal for PLC control systems, machinery sequence control, motor starting delays, automated production lines, and electrical distribution cabinets requiring reliable time-based logic.

Package Content:
1 x H3Y-2 Time Relay, 1 x Socket Base.
