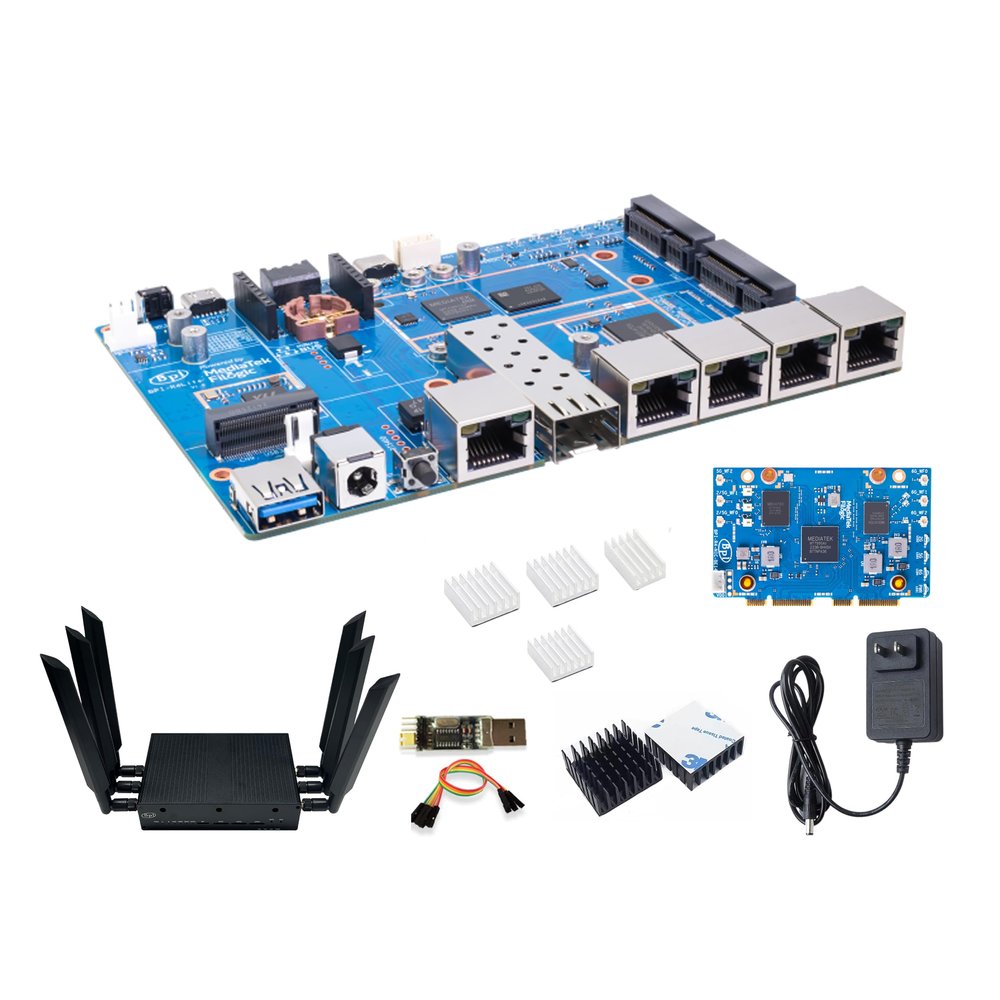

Banana Pi BPI-R4 Lite WiFi 7 Router Dev Board Kit OpenWRT - MediaTek MT7987A SoC - 2GB DDR4 RAM 8GB eMMC, 1x 2.5G SFP RJ45 WAN, 4X GbE Gigabit Ethernet for NAS Smart Home Gateway (2GB, Bundle3)

Description

• [MediaTek MT7987A SoC] Banana Pi BPI-R4 Lite router dev board kit with MediaTek MT7987A (Filogic 880) Quad-core ARM Cortex-A53 CPU design, 2GB/4GB DDR4 RAM 8GB eMMC, 256MBSPI-NAND Flash and 32MBSPI-NOR flash onboard, works as 36Gbps Wi-Fi 7 access point/router/gateway. It is also a very high performance open source router development board.
• [MediaTek MT7995AV Wi-Fi 7 CPU] BPI-R4-NIC-BE14 is a 51x82 mm WiFi 7 module with MediaTek MT7995AV CPU, supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant, 2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, throughput from an extended distance.
• [BPI-R4-NIC-BE14 WiFi 7 Module] Banana Pi BPI-R4-NIC-BE14 Wifi7 Module support the optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7995AV is designed to support standard-based features in the areas of security and quality of service, giving end users the greatest performance at any time and in any circumstances.
• [2.5G SFP/RJ45 WAN and 4x Gbe LAN Port] Banana Pi BPI-R4 Lite wireless wifi 7 router board support 1x 2.5Gbe SFP, 1 2.5G RJ45 WAN and 4x 1G Gbe RJ45 LAN ethernet with 4 Port 10/100/1000 Mbps Gigabit Ethernet port, also with USB3.0 port and M.2 KEY-B interface, support 4G/5G module (EM05/RM500Q-GL/RM520N-GL) signal reception and NVME SSD.Providing the fastest and most reliable network connection.
• [Rich Peripheral interfaces] Banana Pi BPI-R4 Lite wireless router board onboard 1x 2.5G SFP Optical ports, 1 2.5G RJ45 WAN (supports POE and POE module welding), 4x Gbe Gigabit LAN ports, 1x USB3.0 port, 3x Nano SIM Slot, 1x M.2 KEY-B connector for 4G LTE/5G module, 1x miniPCIe slot and USB 2.0 interface, mPCle 3.0 Slot for WiFi 7 NIC Module, 1x MicroSD Slot(TF), 2x 8PIN microbus headers, some of which can be used for specific functions, including UART, I2C, SPI, and PWM.
• [Application Scenarios] Banana Pi BPI-R4 Lite router development board can be applied to Internet Service Router, 4G/5G Wireless Router, Wireless Repeater, Wifi 7 Wireless Router, Home security Gateway, Home Automation, Nas device, Network and Communication Applications. Both in wired and wireless applications.
• [Wiki] SDK Document: "docs.banana-pi.org/en/BPI-R4_Lite/BananaPi_BPI-R4_Lite"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".

-Specification-
HardWare Specification of Banana Pi R4_Lite
CPUMediaTek MT7987A Quad-core Arm Cortex-A53
SDRAM2GB DDR4 (SOC support can up to 4GB)
On board Storage
MicroSD (TF) card,8GB eMMC onboard
GPIO2x8 PIN MikroBUS Header for expanding application,some of which can be used for specific functions including UART, I2C, SPI, PWM.
Onboard Network5 Port 10/100/1000Mbps EthernetSFP1x 2.5G SFP
WifiWifi6/Wifi 7
mini PCIE1x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card) and 1x miniPCIe slot with USB2.0 interface
M.2 interface1x M.2 KEY-B slot with USB3.0 for 5G Module
USB1xUSB 3.0 slot
ButtonsReset button,WPS botton, boot switch
LedsPower status Led and RJ45 Led
DC Power: 12V/5.2 A
Dimension: 100.5mm x 148mm x 20mm
Weight: 250g
-Package Content-
Banana Pi R4 Lite Router Board x1
12V 5A power supply x1
Debugging serial port x1
Heat sink x3
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)".
